Portable

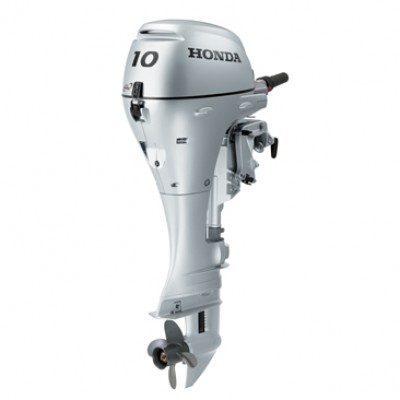

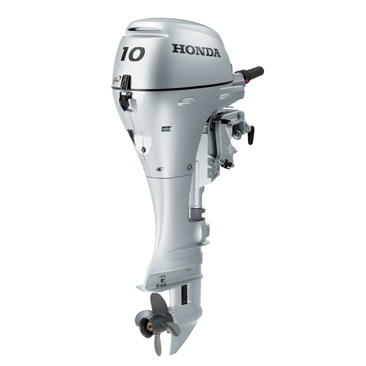

BF10 (10hp outboard)
| TYPE | 4-stroke OHC 2-cylinders / 4-valves |
| DISPLACEMENT | 222cc |
| BORE & STROKE | 58 x 42 mm |
| FULL THROTTLE RPM RANGE | 5,000-6,000 RPM |
| RATED POWER | 10HP @ 5,500 RPM |
| COOLING SYSTEM | Water cooled |
| INDUCTION | 1 carburettor |
| IGNITION SYSTEM | PGM-IG |
| STARTING SYSTEM | Recoil/Electric |
| EXHAUST | Through prop |
| ALTERNATOR | 12-Amp (electric) / 6-Amp (manual) |
| POWER TRIM & TILT | n/a |
| GAS-ASSISTED TILT | n/a |
| TRIM RANGE | 5-stage 4° - 8° - 12° - 16° - 20° |
| TILT RANGE | 72° |
