Portable

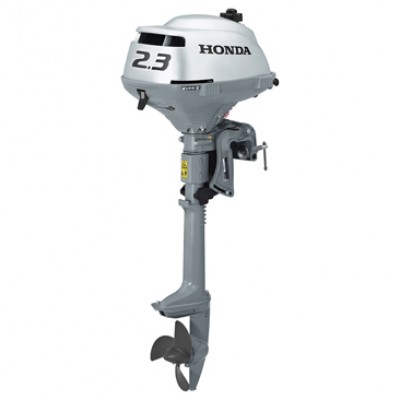

BF2.3 (2.3HP Outboard)
TYPE | 4-stroke OHV 1-cylinder / 2-valves |
DISPLACEMENT | 57cc |
BORE & STROKE | 45 x 36 mm |
FULL THROTTLE RPM RANGE | 5,000-6,000 RPM |
RATED POWER | 2.3HP @ 5,500 RPM |
COOLING SYSTEM | Forced air |
INDUCTION | 1 carburettor |
IGNITION SYSTEM | Transistorised Pointless |
STARTING SYSTEM | Recoil |
EXHAUST | Under water, above propeller |
ALTERNATOR | n/a |
POWER TRIM & TILT | n/a |
GAS-ASSISTED TILT | n/a |
TRIM RANGE | 4-stage 5 ° - 10 ° - 15 ° - 20 ° |
TILT RANGE | 75° |
